Project Black PC (part 12)
7th May 2007

Template for casting

This hole in the fan shroud will have a bubble blown window in it. Originaly it would of had 2 fans in and the devider has been cut out, not sure why as it was found in a skip.

I decided to neaten up the hole with a cast metal frame. So I need to make a template.

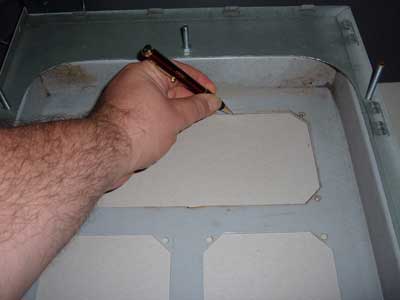

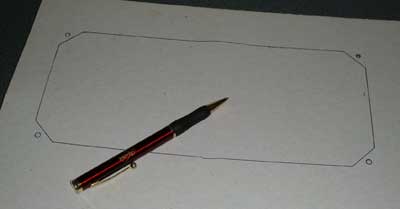

Having drawn around the holes...

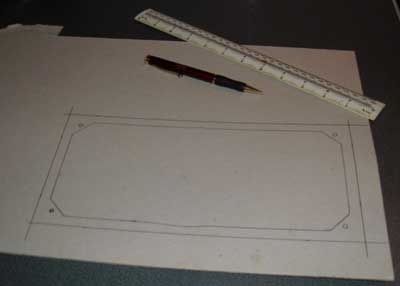

...set out a frame around the hole...

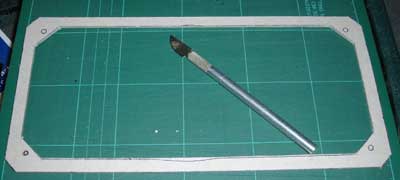

...then cut it out.
